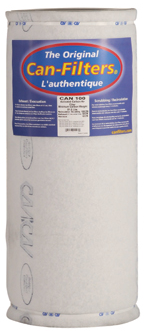

Can-Filter 100
Specifications
Max Recirculating (Scrubbing) CFM: 1680 cfm / 2800 m³h Max Exhaust CFM: 840 cfm / 1400 m³h
@ 0.1 sec contact time
Recommended Min Airflow: 420 cfm / 700 m³h
Prefilter: Yes
Flange: 8", 10", 12"
Dimensions: (with pre-filter)
·Outside Diameter: 42 cm / 16.5"
·Height: 100 cm / 39.4"
·Weight: 47kg / 103lbs.
·Carbon Weight: 37kg / 81.5lbs.
·Carbon Bed Depth: 6.5 cm / 2.56"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa / .75"wg
Recommended Can-Fan:
FAN Watts Consumed Filtered Air CFM
Max-Fan 14" 240 Watts 958 CFM
Max-Fan 12" 488 Watts 1260 CFM
Can-Fan 12" HO 310 Watts 825 CFM
Max-Fan 10" 228 Watts 834 CFM
Can-Fan 10" HO 267 Watts 641 CFM
Max-Fan 8" 165 Watts 580 CFM
Can-Fan 8" HO 278 Watts 600 CFM
Max Recirculating (Scrubbing) CFM: 1680 cfm / 2800 m³h Max Exhaust CFM: 840 cfm / 1400 m³h
@ 0.1 sec contact time
Recommended Min Airflow: 420 cfm / 700 m³h
Prefilter: Yes
Flange: 8", 10", 12"
Dimensions: (with pre-filter)
·Outside Diameter: 42 cm / 16.5"
·Height: 100 cm / 39.4"
·Weight: 47kg / 103lbs.
·Carbon Weight: 37kg / 81.5lbs.
·Carbon Bed Depth: 6.5 cm / 2.56"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa / .75"wg
Recommended Can-Fan:
FAN Watts Consumed Filtered Air CFM
Max-Fan 14" 240 Watts 958 CFM
Max-Fan 12" 488 Watts 1260 CFM
Can-Fan 12" HO 310 Watts 825 CFM
Max-Fan 10" 228 Watts 834 CFM
Can-Fan 10" HO 267 Watts 641 CFM
Max-Fan 8" 165 Watts 580 CFM
Can-Fan 8" HO 278 Watts 600 CFM
Can Filter 100 W/O Flange
$253.95
$253.95
-------------------------------------------------------
