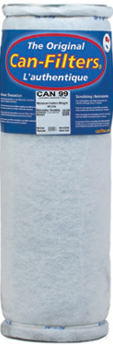

Can-Filter 99
Specifications
Max Recirculating (Scrubbing) CFM: 1236 cfm / 700 m³h
Max Exhaust CFM: 618 cfm / 350 m³h
@ 0.1 sec contact time
Recommended Min Airflow: 309 CFM / m³h
Prefilter: Yes
Flange: 6", 8"
Dimensions: (with pre-filter)
·Outside Diameter: 30.5cm / 12"
·Height: 99.1cm / 39"
·Total Weight: 27.8 kg / 61 lbs.
·Carbon Weight: 20.8 kg / 46 lbs.
·Carbon Bed Depth: 5cm / 2"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa / .75"wg
Recommended Can-Fan:
Fan Watts Consumed Filtered Air CFM
8" Max-Fan 159 watts 522 CFM
8" Can-Fan 133 watts 382 CFM
6" Can-Fan HO 137 watts 322 CFM
Max Recirculating (Scrubbing) CFM: 1236 cfm / 700 m³h
Max Exhaust CFM: 618 cfm / 350 m³h
@ 0.1 sec contact time
Recommended Min Airflow: 309 CFM / m³h
Prefilter: Yes
Flange: 6", 8"
Dimensions: (with pre-filter)
·Outside Diameter: 30.5cm / 12"
·Height: 99.1cm / 39"
·Total Weight: 27.8 kg / 61 lbs.
·Carbon Weight: 20.8 kg / 46 lbs.
·Carbon Bed Depth: 5cm / 2"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa / .75"wg
Recommended Can-Fan:
Fan Watts Consumed Filtered Air CFM
8" Max-Fan 159 watts 522 CFM
8" Can-Fan 133 watts 382 CFM
6" Can-Fan HO 137 watts 322 CFM
Can Filter 99 W/O Flange
$249.50
$249.50
-----------------------------------------------------------
