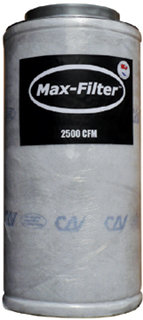

Max-Filter
Specifications
Max Recirculating (Scrubbing) CFM: 2500 cfm / m³h
Max Exhaust CFM: 1250 cfm / m³h
@ 0.1 sec contact time
Recommended Min Airflow: 625 CFM
Prefilter: Yes
Flange: 8, 10 & 12"
Dimensions: (with pre-filter)
·Outside Diameter: 50 cm / 20"
·Height: 100 cm / 39.4"
·Weight: 47kg / 103lbs.
·Carbon Weight: 37kg / 81.5lbs
·Carbon Bed Depth: 6.5 cm / 2.5"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa / .75"wg
Recommended Can-Fan:
Fan Watts Consumed Filtered Air CFM
Max-Fan 16" 322 Watts 1410 CFM
Max-Fan 14" 250 Watts 1230 CFM
Max-Fan 12" 480 Watts 1440 CFM
Can-Fan 12" HO 290 Watts 888 CFM
Max-Fan 10" 227 Watts 907 CFM
Max Recirculating (Scrubbing) CFM: 2500 cfm / m³h
Max Exhaust CFM: 1250 cfm / m³h
@ 0.1 sec contact time
Recommended Min Airflow: 625 CFM
Prefilter: Yes
Flange: 8, 10 & 12"
Dimensions: (with pre-filter)
·Outside Diameter: 50 cm / 20"
·Height: 100 cm / 39.4"
·Weight: 47kg / 103lbs.
·Carbon Weight: 37kg / 81.5lbs
·Carbon Bed Depth: 6.5 cm / 2.5"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa / .75"wg
Recommended Can-Fan:
Fan Watts Consumed Filtered Air CFM
Max-Fan 16" 322 Watts 1410 CFM
Max-Fan 14" 250 Watts 1230 CFM
Max-Fan 12" 480 Watts 1440 CFM
Can-Fan 12" HO 290 Watts 888 CFM
Max-Fan 10" 227 Watts 907 CFM
Can Max 2500 cfm. (4500M3H)
$359.95
$359.95
---------------------------------------------------------
