Specifications
Max Recirculating (Scrubbing) CFM: 2040 cfm / 3400 m³h
Max Exhaust CFM: 1020 cfm / 1700 m³h
@ 0.1 sec contact time
Recommended Min Airflow: 510 cfm / 850 m³h
Prefilter: Yes
Flange: 8", 10", 12", 14"
Dimensions: (with pre-filter)
·Outside Diameter: 42cm / 16.5"
·Height: 125cm / 49.2"
·Weight: 58.6kg / 129lbs.
·Carbon Weight: 46.7kg / 103lbs.
·Carbon Bed Depth: 6.5cm / 2.56"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa/ .75"wg
Recommended Can-Fan:
FAN Watts Consumed Filtered Air CFM
Max-Fan 14" 248 Watts 1120 CFM
Max-Fan 12" 487 Watts 1340 CFM
Can-Fan 12" HO 300 Watts 862 CFM
Max-Fan 10" 227 Watts 879 CFM
Can-Fan 10" HO 260 Watts 670 CFM
Max-Fan 8" 166 Watts 598 CFM
Max Recirculating (Scrubbing) CFM: 2040 cfm / 3400 m³h
Max Exhaust CFM: 1020 cfm / 1700 m³h
@ 0.1 sec contact time
Recommended Min Airflow: 510 cfm / 850 m³h
Prefilter: Yes
Flange: 8", 10", 12", 14"
Dimensions: (with pre-filter)
·Outside Diameter: 42cm / 16.5"
·Height: 125cm / 49.2"
·Weight: 58.6kg / 129lbs.
·Carbon Weight: 46.7kg / 103lbs.
·Carbon Bed Depth: 6.5cm / 2.56"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa/ .75"wg
Recommended Can-Fan:
FAN Watts Consumed Filtered Air CFM
Max-Fan 14" 248 Watts 1120 CFM
Max-Fan 12" 487 Watts 1340 CFM
Can-Fan 12" HO 300 Watts 862 CFM
Max-Fan 10" 227 Watts 879 CFM
Can-Fan 10" HO 260 Watts 670 CFM
Max-Fan 8" 166 Watts 598 CFM

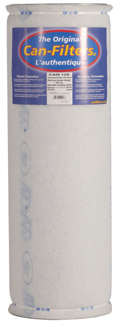

Can-Filter 125
Can Filter 125 W/O Flange
$293.95
$293.95
--------------------------------------------------------
