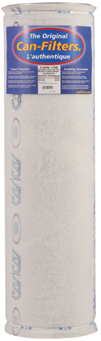

Can-Filter 150
Specifications
Max Recirculating (Scrubbing) CFM: 2520 cfm / 4200 m³h
Max Exhaust CFM: 1260 cfm / 2100 m³h
@ 0.1 sec contact time
Recommended Min Airflow: 630 cfm / 1056 m³/h
Prefilter: Yes
Flange: 10", 12", 14"
Dimensions: (with pre-filter)
·Outside Diameter: 42cm / 16.5"
·Height: 150cm / 60"
·Total Weight: 71kg / 156lbs
·Carbon Weight: 56kg / 123lbs
·Carbon Bed Depth: 6.5cm / 2.56"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa / .75"wg
Recommended Can-Fan:
FAN Watts Consumed Filtered Air CFM
Max-Fan 16" 322 Watts 1410 CFM
Max-Fan 14" 250 Watts 1230 CFM
Max-Fan 12" 480 Watts 1440 CFM
Can-Fan 12" HO 290 Watts 888 CFM
Max-Fan 10" 227 Watts 907 CFM
Max Recirculating (Scrubbing) CFM: 2520 cfm / 4200 m³h
Max Exhaust CFM: 1260 cfm / 2100 m³h
@ 0.1 sec contact time
Recommended Min Airflow: 630 cfm / 1056 m³/h
Prefilter: Yes
Flange: 10", 12", 14"
Dimensions: (with pre-filter)
·Outside Diameter: 42cm / 16.5"
·Height: 150cm / 60"
·Total Weight: 71kg / 156lbs
·Carbon Weight: 56kg / 123lbs
·Carbon Bed Depth: 6.5cm / 2.56"
Max Operating Temp: 80ºC
Pressure drop at max cfm: 180pa / .75"wg
Recommended Can-Fan:
FAN Watts Consumed Filtered Air CFM
Max-Fan 16" 322 Watts 1410 CFM
Max-Fan 14" 250 Watts 1230 CFM
Max-Fan 12" 480 Watts 1440 CFM
Can-Fan 12" HO 290 Watts 888 CFM
Max-Fan 10" 227 Watts 907 CFM
Can Filter 150 W/O Flange
$329.95
$329.95
---------------------------------------------------------
